Name: Custom PCB manufacturer fast turn printed circuit board assembly with irregular shape and ENIG
Brand: Suntek Electronics Co., Ltd.
SKU: F016-051
Price: 50.00 USD
Availability: InStock

Σπίτι > προϊόντα > Συγκρότηση PCB κλειδί σε χέρι >

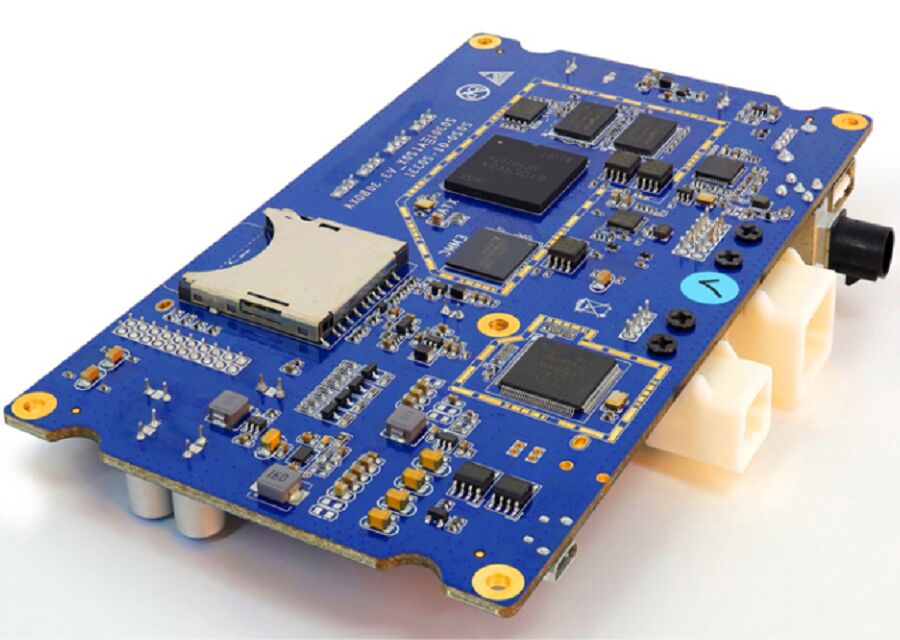

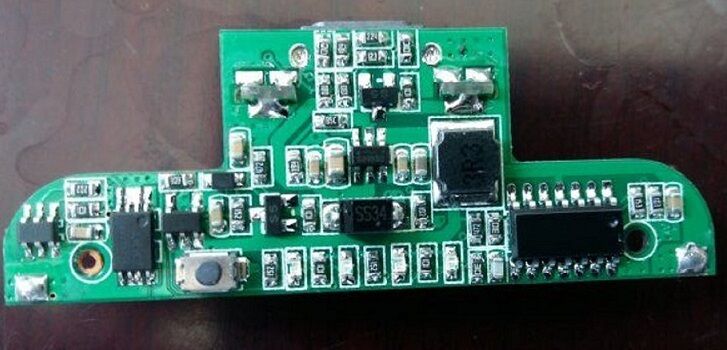

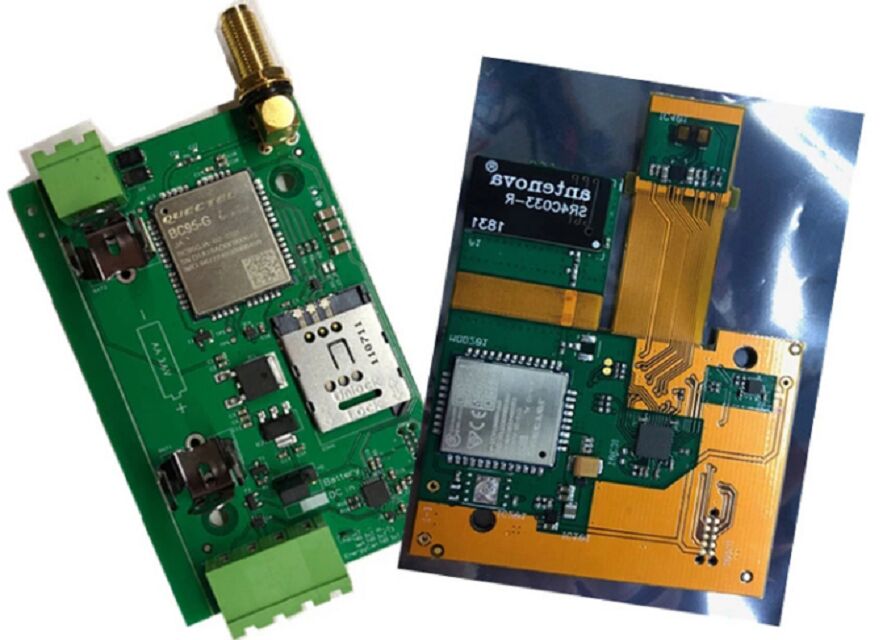

Custom PCB manufacturer fast turn printed circuit board assembly with irregular shape and ENIG

Custom PCB fast turn assembly

Irregular shape PCB ENIG

Turnkey PCB Assembly service

Τόπος καταγωγής:

Κίνα/Καμπότζη

Μάρκα:

Suntek/BECC

Πιστοποίηση:

ISO9001 ISO13485 IATF16949 UL

Αριθμό μοντέλου:

F016-051

Επικοινωνήστε μαζί μας

Ζητήστε μια προσφορά

Λεπτομέρειες για το προϊόν

Υλικό:

FR4, Rogers, Μέταλλο, Αλουμίνιο, CEM

Πάχος:

0.4mm-5mm

Στρώμα:

1L-32L

Επιφάνεια:

LF HASL,ENIG,OSP,Επιχρυσωμένο

Μέγιστο μέγεθος.:

1200*400 χλστ

Πρότυπο ποιότητας:

IPC-610A Κατηγορία 2 ή Κλάση 3

Εφαρμογή:

Ηλεκτρονικά AI, ιατρική, βιομηχανική, αυτόματη, μέτρηση, οθόνη

Όροι πληρωμής και αποστολής

Ποσότητα παραγγελίας min

Τιμή

Customized products

Συσκευασία λεπτομέρειες

Από τσάντες ESD και χαρτοκιβώτιο

Χρόνος παράδοσης

5-7 ημέρες μετά από όλα τα εξαρτήματα

Όροι πληρωμής

TT, Paypal

Συγγενικά προϊόντα

βίντεο

Custom PCB manufacturer fast turn printed circuit board assembly with irregular shape and ENIG

Βρείτε την καλύτερη τιμή

βίντεο

PCB fabrication and assembly Turnkey pcb assembly Contact manufacturer in China and Cambodia for artificial intelligence

Βρείτε την καλύτερη τιμή

βίντεο

EMS Factory Fast Turnaround PCB fabrication and PCB assembly in Cambodia for automotive

Βρείτε την καλύτερη τιμή

βίντεο

PCB assembly services One-stop EMS solution with fast turnaroud and prototypes for Automotion

Βρείτε την καλύτερη τιμή

Επικοινωνήστε μαζί μας

Επικοινωνήστε τώρα

Περιγραφή του προϊόντος

Quick-turn Full Turnkey PCB Manufacturer and PCB Assembly for AI products

PCBA/PCB One-stop EMS Solution PCB Assembly SMT/THT/DIP Assembly

with 14-Year Experience and ISO9001/ISO13485/IATF16949 and UL certified

Wire Harness and Box-Build Contract Factory in China and Cambodia

About Suntek Group:

1) We offer One-stop PCB/FPC,PCB assembly,Cable assembly and Box build assembly service

2) 14-years of turnkey OEM/ODM experience

3) We can provide FR4,Rogers,Aluminum PCB and PI FPCs

4) Timely customizations PCBs and PCBAs according your BOM list and Gerber files.

Headquarter: Suntek China

PCB/PCB Assembly
Wires/Cable Assembly
FPC/FPC Assembly
Box Building

Add: Bld3, No.68 Luositang Road, Changsha E&D Zone, Changsha, Hunan, CN

Subsidiary: BECC Cambodia

Area: 28,500 feet²
Employees: 22+, extendable to 200+
SMT Lines: 2 lines, extendable to 6 lines
THT Lines: 1 line, extendable to 4 lines
Cable Assembly: 1 line, extendable to 2 lines
Box Building: Extendable to 2 lines

Add: Prey Khla Village, Krang Mkak Commune, Angk Snuol District, Kandal Province, Cambodia

Main Products

1. PCB	2. PCBA	3. FPC	4. FPC Assembly
5. Flexible-Rigid PCB	6. Aluminum PCB	7. Rogers PCB	8. HDI PCB
9. Cable Assembly	10. Wire Harness	11. Box Build	12. Technical Supports

PCB Capability:

Layer	1~32 Layers
Material	FR4(Tg 135-Tg180) 94v0,Rogers,Aluminum
Order Quanyity	1~500,000

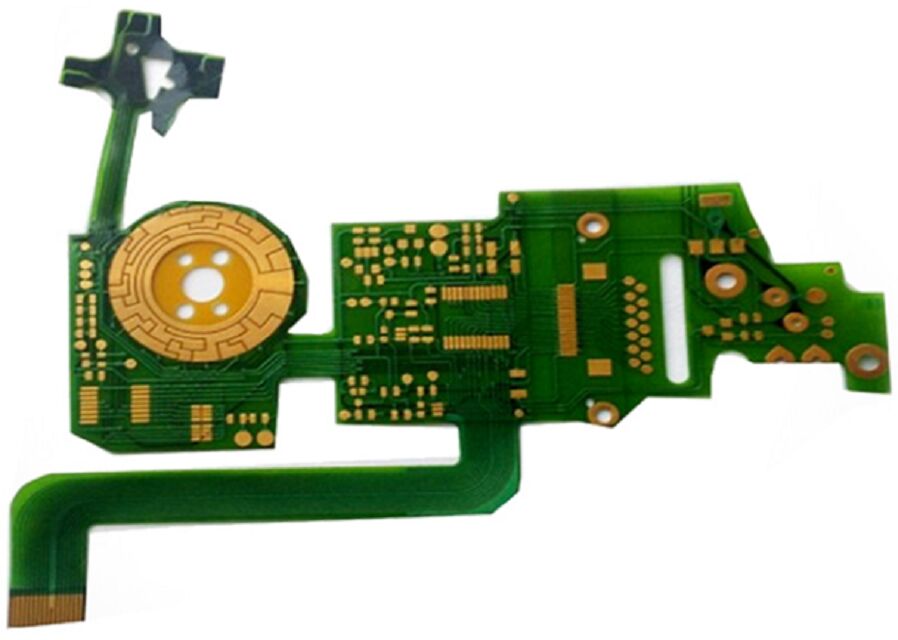

Board shape	Rectangular,Round,Slots,Cutouts,Complex,Irregular
Board Cutting	Shear,V-score,Tab-routed,Counter sunk
Board thickness	0.5~5.0mm,Flex 0.01~0.25“
Copper weight	0.5oZ~10oZ
Solder mask	Double-sided green LPI,red,white,yellow,blue,black,purple,etc
Silk screen	Double-sided or single-sided in white,yellow,red,black
Min line width/space	50um
Max board dimensions	400mm*1200mm
Min drill hole diameter	0.1mm
Surface finish	HASL,ENIG,Immission Ti,Immisson Silver,OSP,ENEPIG,etc
Board thickness tolerance	±10%
Quality Standard	IPC-A610 Class2/Class 3
Design file format	Ki-CAD,Pro-E Gerber,Eagle and AutoCAD'S DXF,DWG

Detailed Terms for PCB Assembly

Technical requirement:

1) Professional Surface-mounting and Through-hole soldering Technology

2) Various sizes like 1206,0805,0603,0402,0201 components,BGA,QFN,DFN SMT technology

3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.

5) PCB Assembly with Lead or non-lead RoHs

6) AI machine assembly,waving solering assembly lines

7) High density interconnected board placement technology capacity

PCB Assembly Quality Control

Our Target: 95% customers satisfied
Quality Policy: Continuous improvement makes the perfect quality, and reach a win-win relationship with customers
Our Solution: One-stop, Flexible, Continuous improvement
Business Philosophy: Quality Wins Market, Ideas Create The Future
Our Vision: The long-term win-win partners in EMS field

Custom PCB manufacturer fast turn printed circuit board assembly with irregular shape and ENIG 0

Suntek Supports

Response Time: We respond to complaints, issues and queries within 24 hours through:

Weekly reports
Customer supporting team to review communication details
Customer satisfaction questionnaire

After-sales Services:

1-year guarantee period for all products
FOC repair
Quick compensation parts to replace defectives

Additional Support:

Cost transparency with BOM cost breakdown sharing
Components suppliers from the Global
Written process to advise customers of schedule delays or quality problems through:
- Customer service procedure
- RMA procedure
- 8D reports
- PDCA (Plan-Do-Check-Action) in customer service
