Turnkey 1-32 Layer FR-4 PCB Assembly High TG ENIG Surface RoHS Compliant
About Suntek Group
Suntek is a contract supplier in EMS field with one-stop solution for FCB/FPC assembly, Cable assembly and Box-build assembly.
Suntek Electronics Co., Ltd, as the major facility, located in Hunan Prov, China; BLSuntek Electronics Co., Ltd, as the new facility, located in Kandal Prov, Cambodia.
With ISO9001:2015, ISO13485:2016, IATF 16949:2016 and UL E476377 certified, we deliver qualified products with competitive price to clients worldwide.
Our Services
- With your Gerber file and BOM, we can make it into a real product
- With your physical sample, we can provide reverse-engineering service
- With your ideas, we can provide joint-design service
EMS Advantages
- Strict product liability, taking IPC-A-610 standard
- All teams can speak fluent English
- PDCA management tool
- 100% E-test, 100% visual inspection (IQC, IPQC, FQC, OQC)
- 100% AOI inspection (X-ray, 3D microscope and ICT)
- High-voltage test, impedance control test
- ISO9001, ISO13485, IATF16949 and UL certified
- No minimum order quantity
- Focus on low to medium volume production
- Quick and on-time delivery

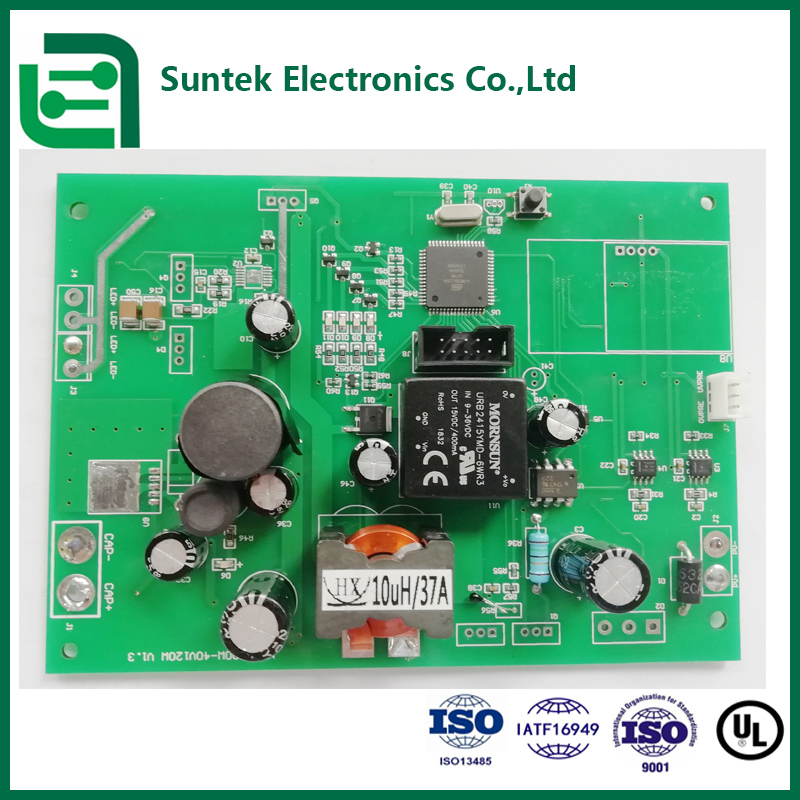

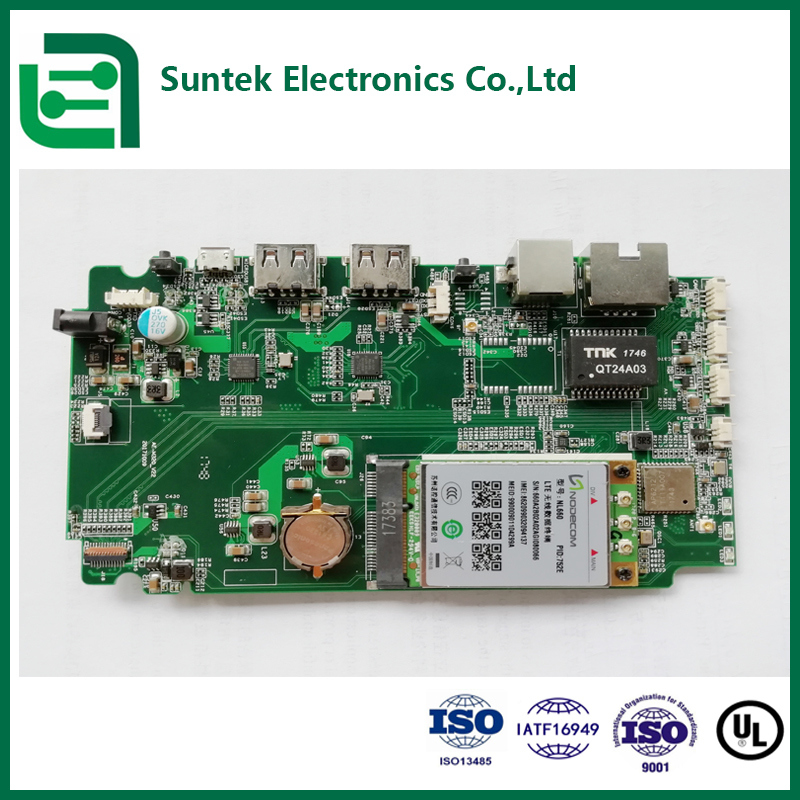

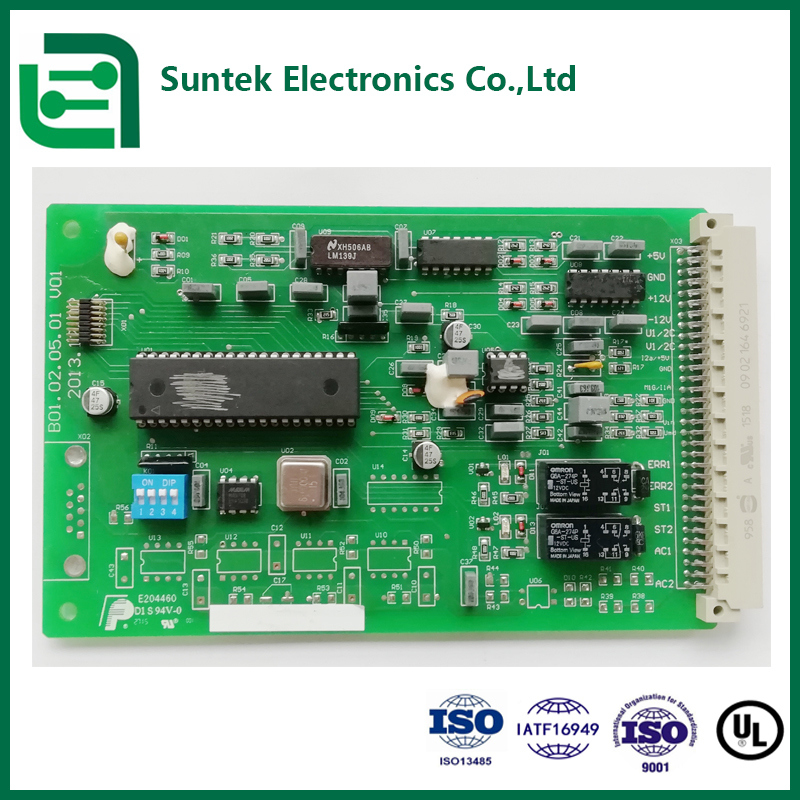

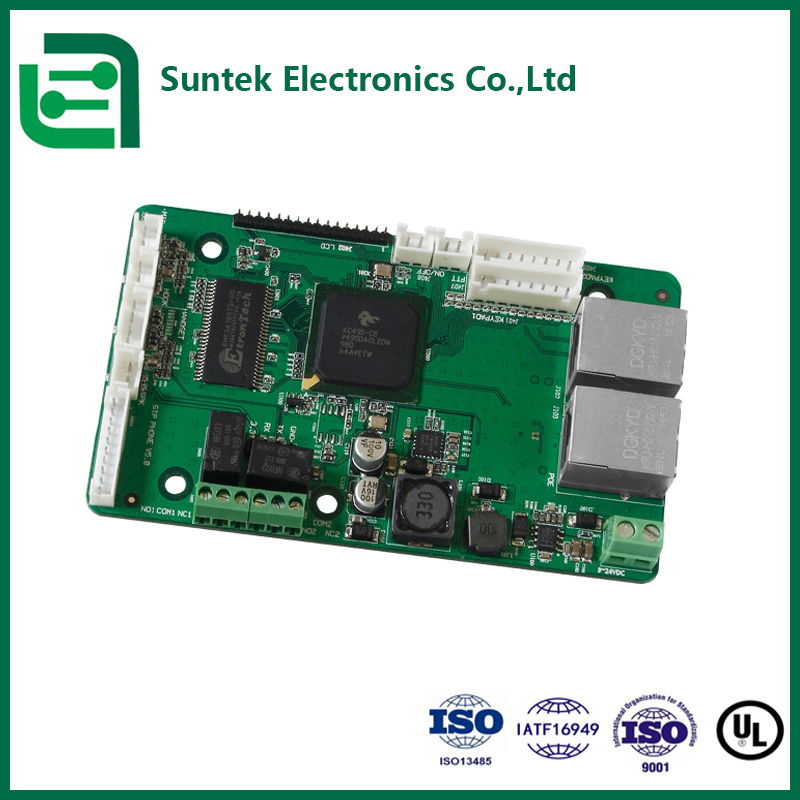

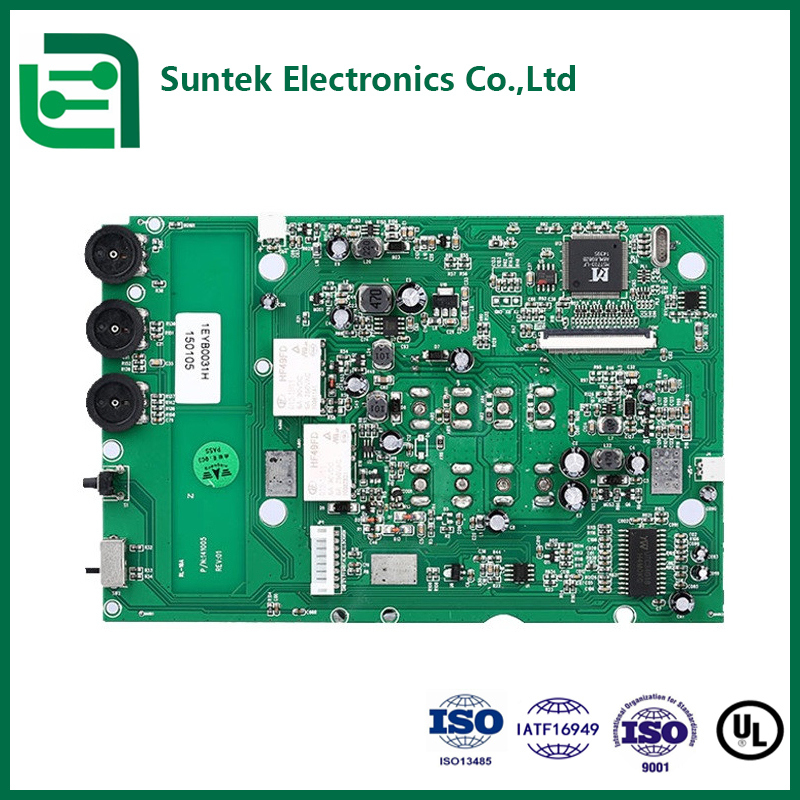

PCBA Examples
PCB Assembly Capability
| Item |
Parameter |
| Board Type: |
Rigid PCB, Flexible PCB, metal core PCB, Rigid-Flex PCB |
| Board Shape: |
Rectangular, Circular and any irregular Shapes |
| Max Size: |
400mm * 1200mm |
| Min Package: |
0201 |
| Fine Pitch Parts: |
0.25mm |
| BGA Package: |
Acceptable |
| DIP Capacity: |
DIP lines and AI assembly line |
| Parts Sourcing: |
All by Suntek or partial consigned by customer |
| Parts Package: |
Reels, Cut Tape, Tube & Tray, Loose Parts and Bulk |
| Testing: |
Visual inspection, AOI, X-RAY, Functional Testing |
| Types of Solder: |
Lead or Lead-free (RoHS Compliant) assembly |
| Assembly Option: |
Surface mount (SMT), Through-hole (DIP), Mixed technology (SMT & Thru-hole) |
| Stencils: |
Laser cut stainless steel stencils, step-down stencil |
| File Formats: |
Bill of Materials, PCB (Gerber Files), Pick-N-Place File (XYRS) |
| Quality Grade: |
IPC-A-610 Class 2/Class 3 |
Application Examples
Why Choose Suntek?
As an experienced and reliable manufacturer, Suntek provides one stop service, including PCB manufacturing and PCB assembly for customers worldwide. Our strong teams help customers save time and money while delivering highest quality products at favorable prices.
Our Supports
- Cost transparency with BOM cost breakdown sharing
- Global component suppliers network
- Written process for schedule/quality issue communication
- 24-hour response to complaints and queries
- 1-year guarantee period for all products
- Free of charge repair service
- Quick compensation parts replacement
Quality Control
Frequently Asked Questions
Q1: What files do you use in PCB fabrication?
A1: Gerber, PCB, Auto CAD
Q2: How do you make sure the quality?
A2: Our products are 100% E-tested. PCB Assembly includes 100% AOI, ICT, FT and Visual checking, plus 100% X-ray for BGA.
Q3: Can we visit your company?
A3: Welcome to visit our company at Xingsha Industrial Park, Changsha, Hunan province, China.
Q4: What is the lead time?
A4: 3-5 working days for samples, 7-10 working days for batch production, 15-20 working days for PCB assembly.
Q5: Will you keep our information and files secret?
A5: Yes, we protect customer designs as our basic principle. NDA can be signed at any time.
Q6: How to work with you?
A6: Email us your PCB layout file and BOM list. We'll reply within 12 hours and provide quote within 3-5 days. After confirmation, we'll proceed with your order.
